FILTEC 3 Fill Level Inspection

The Industry Leader for Accurate Fill Level Inspection of Cans

The FILTEC 3 Photon Level Inspection solution can be used to inspect glass, metal, or plastic containers filled with most types of liquids, solids, and semi-solid materials. The system is available in either Gamma or X-Ray technology options.

The system inspects for over-and/or under-fill, including high and low foam detection at speeds up to 140,000 cans per hour or 72,000 bottles per hour. Advanced diagnostics reduce maintenance downtime and service calls, and auto-shutter activates closing the source aperture any time conveyor shuts down.

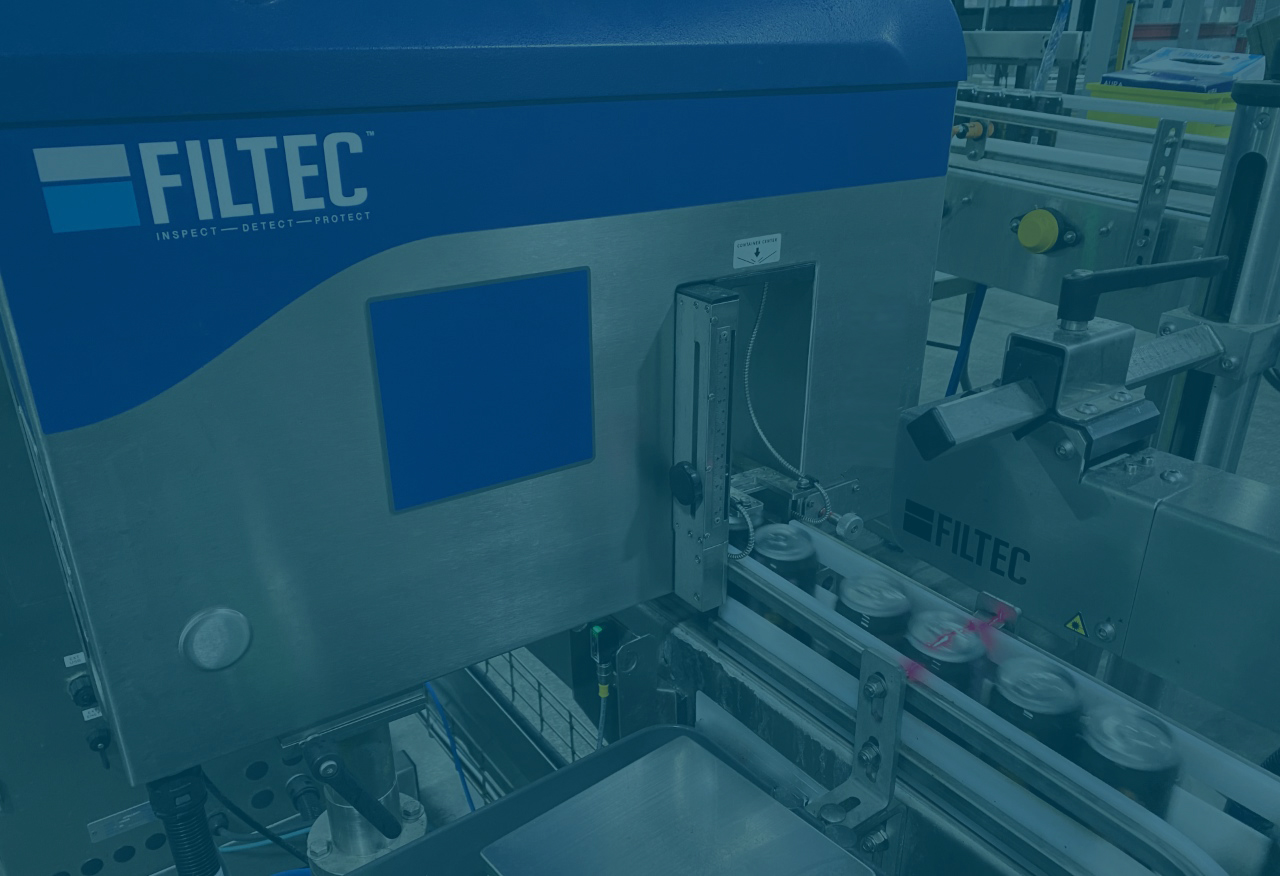

Standalone 3G Fill Level

System Highlights

Small machine footprint for easy installation

Compact, hygienic design

Option of Gamma or X-Ray Systems

Support both glass or PET bottles

Eliminate false rejects due to foam presence and filler malfunctioning

Integrates with INTELLECT modules for a complete inspection solution

Inspects Full Bottles and Cans For:

  • Underfill or overfill

  • Missing cap/missing lid

  • Pressure/vacuum detection

  • High/cocked cap detection or high cork

  • Label detection

  • Low cork or missing cork

  • Down bottle/down can

  • High/low foam

  • Smashed bottle/ bulged can

  • Missing foil seal under non-metal cap

  • Vent tube detection
